How to Replace a Shovel Handle Rivet: Practical Repair Guide for 2026

Compacted clay, dense roots, and heavy gravel put massive leverage on a digging shovel neck, and a loose fastener quickly turns every spade thrust into a frustrating, inefficient wobble. When a factory pin loosens or shears completely under load, learning how to replace a shovel handle rivet allows you to restore complete tool stability without buying a new shovel. Taking the time to properly seat and peen a solid metal fastener eliminates dangerous slop at the socket connection and protects the wooden or fiberglass shaft from splitting under prying pressure.

Whether you are working with an open-back round point shovel or a heavy forged garden spade, structural rigidity depends directly on the tight friction fit between the socket collar and the handle tenon. Before you begin excavating deep trenches or clearing dense yard brush where a pruning saw for garden maintenance helps sever stubborn roots, securing your shovel hardware ensures maximum digging control. With a few basic workshop supplies like a punch, a drill, and a solid replacement fastener, you can return a reliable digging tool to service in under an hour.

Re-Securing the Socket: The Complete Shovel Rivet Replacement Process

Restoring a loose shovel blade to its original working rigidity requires removing the damaged factory pin and correctly upsetting a new solid rivet through the collar. A properly installed fastener pulls the steel socket tightly against the wooden or synthetic handle tenon, preventing the microscopic movement that accelerates socket shear. By following a methodical mechanical sequence, you can rebuild the joint so it withstands rigorous yard excavation, planting, and material transfer.

Diagnosing Rivet Failure and Socket Integrity

Pinpointing the exact cause of blade play is essential before driving out any fasteners. In many cases, repeated prying against compacted hardpan or heavy rocks bends the rivet shank, allowing the blade collar to shift back and forth along the wood. In other situations, moisture exposure causes the wood fibers inside the neck to shrink, creating an internal void that leaves the rivet unsupported. Wiggling the blade by hand helps you determine whether the rivet has sheared internally or if the handle shaft itself has developed hairline stress fractures near the frog.

Inspecting the steel socket for structural cracks is equally important before proceeding with hardware replacement. Open-back stamped shovels often tear along the welded seam or around the rivet hole when subjected to excessive lateral leverage. If the steel collar has stretched excessively or cracked through the fastener bore, installing a new rivet will not restore structural integrity. If the steel remains sound and the handle tenon is free of rot, replacing the rivet will successfully eliminate play and restore full tool function.

Fastener Selection: Aluminum, Steel, and Iron Options

Selecting the right fastener material directly impacts both ease of installation and the long-term shear strength of the shovel joint. Solid aluminum rivets, such as those found in 50x6mm multipacks from JINGIHE or UFURMATE, offer high corrosion resistance and malleability. Aluminum expands smoothly inside the wood bore during peening, creating an airtight grip without requiring heavy sledgehammer blows. These fasteners work exceptionally well for general residential garden shovels, border spades, and lightweight scoop tools where extreme prying forces are rare.

For heavy-duty digging tools subjected to rocky clay and stubborn roots, solid iron or stainless steel fasteners deliver significantly higher shear resistance. Traditional iron rivets, such as the Link Handles 64099 1-3/4 inch hardware, provide authentic replacement strength that matches original factory specifications on classic agricultural tools. Solid 304 stainless steel options, such as the BaYiToo 50x6mm rivets, provide outstanding tensile durability and complete immunity to rust in wet soil environments. While stainless steel requires firmer hammer strikes to form a proper shop head, it resists deformation under severe prying leverage far better than softer alloys.

Required Workshop Tools and Safety Preparation

Proper workspace setup makes the extraction and setting process substantially safer and more predictable. You will need a heavy bench vise with protective jaw pads, a center punch, a ball-peen hammer, and a variable-speed drill with sharp cobalt or high-speed steel drill bits. An angle grinder or metal hand file is helpful for flattening deformed factory heads before center punching. You should also gather a sturdy pin punch matched to the rivet shank diameter and an anvil surface or heavy sledgehammer head to serve as a bucking tool during peening.

Personal safety precautions are mandatory whenever striking hardened steel tools or drilling metal hardware. Flying metal slivers and mushroomed hammer heads present severe eye hazards, making ANSI-approved safety glasses essential throughout the procedure. Heavy leather work gloves protect your hands from sharp sheet metal burrs along the shovel socket while stabilizing the tool during drilling. Securing the shovel blade firmly in a vise prevents the tool from spinning dangerously if a drill bit catches on the steel collar.

Step 1: Extracting the Sheared or Loose Rivet

The removal process begins by immobilizing the shovel blade horizontally in your bench vise with the factory rivet head facing upward. If the original rivet head has deformed from scraping across stones, file the top flat to establish a clean, level surface. Position your center punch directly in the geometric center of the rivet head and strike it firmly with a hammer to create a drill locating dimple. This indentation prevents the drill bit from wandering off center and scarring the surrounding shovel socket collar.

Chuck a drill bit that matches or is slightly smaller than the rivet shank diameter, typically 3/16 inch or 5mm for standard 6mm hardware. Apply a drop of lubricating cutting oil to the dimple and drill slowly into the rivet head, keeping the drill chuck perpendicular to the socket plane. Drill only deep enough to penetrate the rounded cap and reach the junction where the head meets the shank. Stop drilling immediately once the cap weakens, then snap off the remaining ring with a cold chisel or the tip of a punch.

Align a hardened steel pin punch against the exposed rivet shank and drive it through the handle bore with decisive hammer blows. If the rivet has bent inside the wooden core from lateral digging loads, it may bind tightly against the interior wood fibers. In that scenario, supporting the underside of the shovel socket on an open vise allows the pin to exit without splitting the wood. Once the old fastener clears the bore, wipe away all metal shavings, wood dust, and loose rust flakes from the collar area.

Step 2: Preparing and Aligning the Handle Tenon

Before inserting new hardware, carefully inspect the condition of the pre-drilled bore through the handle tenon. If a loose rivet has wallowed out the wooden hole into an elongated oval, a standard 6mm fastener will continue to allow noticeable play. You can clean and true the hole by running a 1/4-inch or 6mm twist bit straight through both sides of the socket while the handle is fully seated. Ensuring the hole remains round and centered allows the replacement rivet shank to contact the wood uniformly along its entire length.

Check that the wooden shaft remains fully seated against the bottom stop of the socket before securing the joint. On hardwood ash handles, the grain lines should run straight and parallel to the direction of digging force to maximize bending resistance. If you are fitting a new replacement shaft, shaping the tenon smoothly prevents stress concentrations that lead to early fractures at the collar lip. When sizing wood handle tenons to match socket depths, using a dedicated hand saw for timber cuts ensures clean shoulder edges without tearing the delicate grain structure.

On hollow fiberglass shafts with solid resin inserts, confirm that the internal core has not cracked or separated from the outer fiberglass sleeve. Drilling through fiberglass produces abrasive dust that should be wiped clean immediately to prevent skin irritation. Align the pre-drilled holes in the socket collar perfectly with the hole in the handle core before driving any fasteners. Forcing a rivet through misaligned holes can peel the outer composite fibers or distort the steel socket collar.

Step 3: Sizing and Inserting the Replacement Rivet

Insert your chosen solid rivet through the aligned socket hole so the factory round head rests flush against the steel collar. The protruding tail on the opposite side must provide sufficient metal volume to form a sturdy, mushroomed shop head. As a standard workshop rule, the rivet tail should extend beyond the socket surface by approximately 1.5 times the shank diameter. For a standard 6mm (0.24-inch) rivet shank, you need roughly 9mm (3/8 inch) of exposed tail protruding past the outer steel wall.

Many replacement hardware kits, such as 50mm solid aluminum or steel pins, are intentionally manufactured extra long to accommodate wide agricultural sockets. If your shovel neck measures only 32mm across, a 50mm rivet will protrude excessively and bend sideways rather than swelling properly when struck. Measure the socket thickness, add the required 9mm tail allowance, and mark the cut line cleanly on the shank. Trim the excess length using a sharp hacksaw, then chamfer the cut edge slightly with a metal hand file to remove burrs.

Step 4: Peening and Upsetting the Shop Head

Upsetting a solid rivet requires a firm, immovable backing surface directly beneath the factory head. Rest the factory round head against an anvil face, the anvil step of a heavy bench vise, or a supported 10-pound sledgehammer head. Any bounce or vibration in your anvil setup absorbs kinetic energy, preventing the rivet shank from expanding inside the wood. Have an assistant steady the shovel blade if needed, ensuring the factory head stays pinned tightly against the steel collar throughout the hammering process.

Begin upsetting the rivet by striking the flat end of the exposed tail straight on with the flat face of your ball-peen hammer. Deliver several firm, square blows directly along the longitudinal axis of the shank rather than striking at an angle. These axial blows force the internal portion of the shank to swell radially, filling every microscopic void inside the wood handle bore. This internal shank expansion creates a tight mechanical lock that prevents the handle from developing future socket looseness.

Once the shank has swelled and the tail shortens to a thick stub, flip your hammer to use the rounded ball peen. Strike the outer circumference of the tail with overlapping, light blows, working around the perimeter in a circular pattern. This radial peening spreads the malleable metal downward and outward into a smooth, dome-shaped shop head that overlaps the socket hole. Finish with a few light taps around the edges to ensure the newly formed head clamps the steel collar firmly with zero gaps.

Fastening D-Grip Handles and Upper Shaft Collars

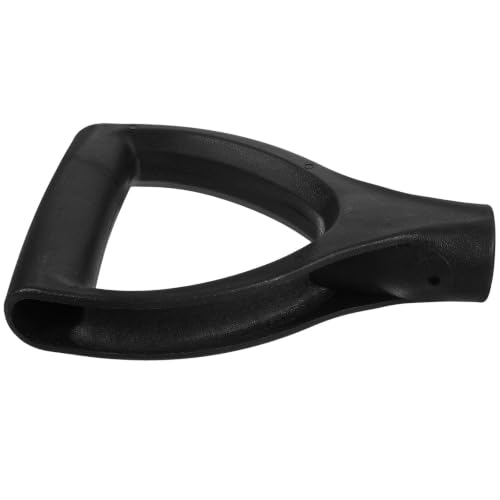

Replacing fasteners on upper D-handles requires a slightly different approach than working on heavy lower steel sockets. Replacement D-grips, such as those produced by LIOOBO, Moicstiy, LAPXSNZD, Saycker, or Dickmaction, typically feature 32mm (1.26-inch) mounting collars made from PVC, composite plastic, or pressed steel. When securing a plastic D-grip to a wooden or fiberglass shaft, excessive hammer force during peening can crack the synthetic sleeve around the mounting hole. For polymer grips, aluminum alloy rivets are preferable because they deform under moderate strikes without over-stressing the plastic housing.

Many synthetic replacement handles also include dual pre-molded mounting holes designed to accept self-tapping screws alongside or in place of rivets. If you choose to install through-rivets on a composite handle, place a wide steel washer under both the head and the peened tail to distribute mechanical clamping force. This washer prevents the swelling rivet shank from crushing the polymer collar during heavy lifting or snow pushing. Confirm that the grip aligns squarely with the shovel blade plane before driving the final fastener home so your wrists remain in a natural posture during digging.

Operational Safety, Soil Mechanics, and Leverage Limits

Restoring your shovel socket with a new rivet returns the tool to factory specifications, but manual digging tools have distinct mechanical limits. Shovels and garden spades are engineered specifically for penetrating soil, slicing sod, and lifting loosened earth, not for serving as high-load pry bars. Applying your full body weight to the end of a long handle to lever out mature stumps or massive boulders exerts thousands of pounds of torque on the socket neck. This extreme mechanical advantage will shear even heavy iron rivets, bend steel collars, or fracture hardwood shafts regardless of fastener quality.

When you encounter stubborn underground obstacles during deep trenching or bed preparation, pause your digging and clear surrounding earth before attempting extraction. If heavy woody roots impede your trench line, using a dedicated hand saw for cutting branches cleanly severs the obstruction without damaging your shovel socket joint. Always practice safe lifting mechanics by hinging at your hips, bending your knees, and keeping loaded shovel blades close to your center of gravity. Furthermore, remember to contact utility locating services such as 811 before breaking ground to ensure your excavation path is completely clear of buried utility lines.

Preventative Care and Joint Preservation

Routine preventative maintenance keeps replacement rivets tight and prevents seasonal weathering from loosening your repaired tool. Moisture infiltration is the primary culprit behind loose sockets, as wet wood expands temporarily and then contracts significantly during dry summer storage. Coating the exposed wooden tenon and open socket frog with boiled linseed oil seals the grain against water absorption and rot. For steel and iron rivets, applying a thin wipe of paste wax or protective oil inhibits oxidation and keeps moisture from corroding the internal joint.

Inspect your shovel collar periodically throughout the digging season, especially after demanding landscaping projects or heavy slush clearing. If you detect slight blade play beginning to develop, resting the factory head on an anvil and striking the shop head with a ball-peen hammer will quickly re-tighten the joint. Scraping packed mud and moist organic matter out of open-back socket cavities after each use prevents moisture from sitting against the wood tenon. Storing your shovels hanging vertically in a dry workshop shields both the handle grain and metal hardware from ground humidity and premature wear.

Replacing a worn shovel rivet transforms a wobbly, hazardous yard implement back into a dependable, rigid digging companion. Selecting the right fastener material, sizing the shank accurately, and carefully upsetting the tail creates a permanent mechanical bond that outlasts temporary hardware fixes. With the blade collar securely anchored and the handle grain protected against seasonal decay, your shovel is fully prepared to deliver years of reliable excavation, lifting, and edging performance.
